TRUE
ADVENTURE MACHINE
COLOR VARIANTS
Rp. 559.900.000 (MT), Rp. 599.900.000 (DCT)
HONDA TRICOLOR
PRODUCT FEATURES
SPECIFICATION DETAILS
| Overall (L x W x H) : | 2,330 x 960 x 1,560 mm |
| Wheelbase : | 1,575 mm |
| Ground Clearance : | 210 mm |
| Seat Height : | 810 mm (low), 830 mm (high) |
| Curb Mass : | 238 Kg (M/T), 248 kg(DCT) |
| Fuel Tank Capacity : | 24.8 liters (Africa Twin) |
| Engine Type | Liquid-cooled, 4-stroke, 8-valve, Parallel Twin with 270° crank and uni-cam |
| Displacement | 1.084 cc |
| Cooling System | Liquid Cooled |
| Fuel Supply System | PGM-FI electronic fuel injection |
| Bore x Stroke | 92 mm x 81,5 mm |
| Compression Ratio | 10,1 : 1 |
| Max. Power | 75 kW/7,500 rpm |
| Max. Torque | 105 Nm/6,000 rpm |
| Transmission | 6 Speed Manual (M/T), 6 Speed (DCT) |
| Gear Shift Pattern | 1-N-2-3-4-5-6 (M/T), N-1-2-3-4-5-6 (A/T) |
| Starting System | Electric |
| Clutch System | Wet, multiple with coil springs, Aluminium Cam Assist an Slipper Clutch |
| Lubricant Type | Dry (Pressing an Spray) |
| Oil Capacity | 3,9 L periodic exchange (M/T), 4 L periodic exchange (DCT) |
| Frame Type | Semi double cradle |
| Tire Size Front | 90/90 - 21M/C 54H (tube type) |
| Tire Size Rear | 150/70 - 18M/C 70H (tube type) |
| Brake Type Front | 310 mm dual wave floating hydraulic disc with aluminium hub and radial fit 4-piston calipers and sintered metal pads |
| Brake Type Rear | 256 mm wave hydraulic disc with 2-piston caliper and sintered metal pads, 2-channel with ABS off mode |
| Suspension Type Front | Showa 45 mm cartridge-type inverted telescopic fork with dial-style preload adjuster and DF adjusment, 185 mm stroke |
| Suspension Type Rear | Monoblock adjustment, 79,5 mm stroke |
| Ignition Type | Full Transisterized, Battery |
| Battery | 12V-6Ah Li-ion |
| Spark Plug Type | NGK SILMAR8A9S |
| Headlight | Hi 15,65 W x 2 LED, Low 9,35 W x 2 LED |

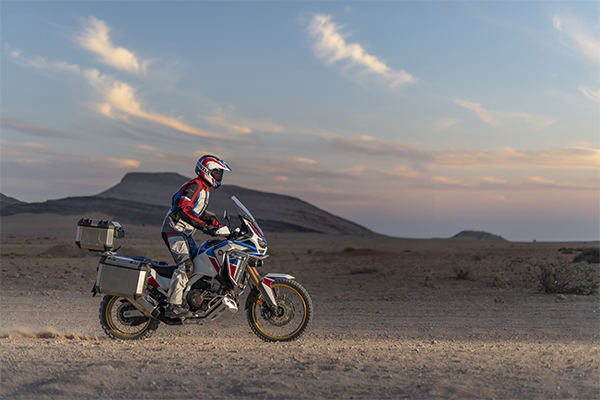

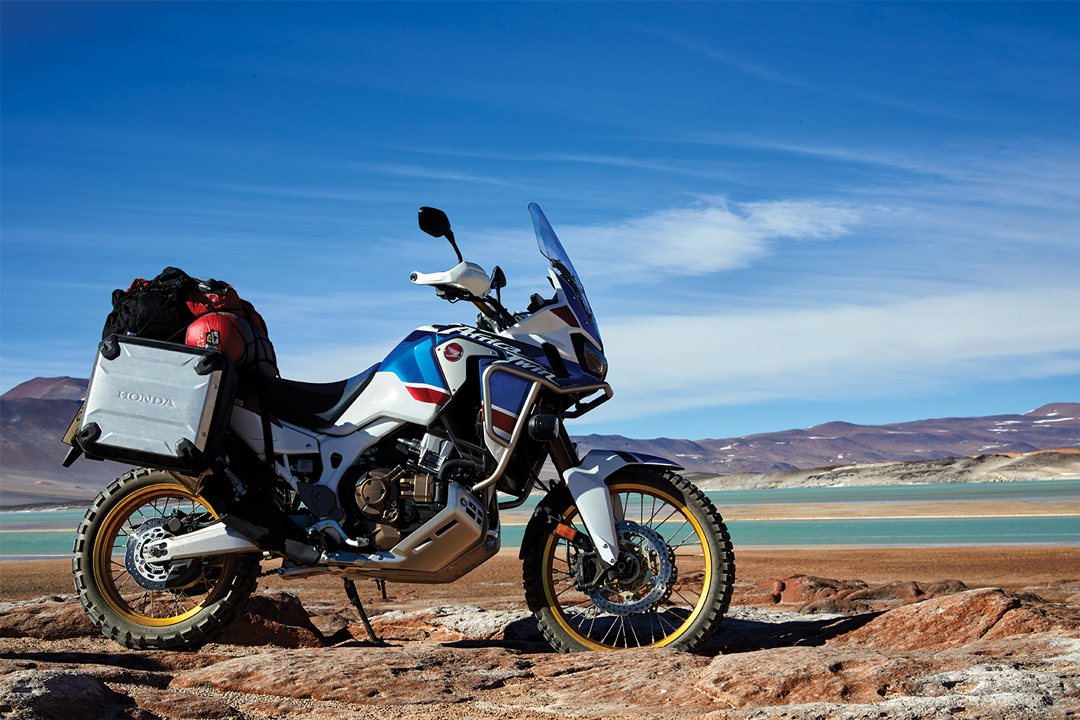

BIKE GALLERY
